Naming conventions

Updated July 2026

Naming conventions define how every asset in your project is named and where it lives, both in the engine and on disk. You author one document per project; Dousen compiles it and serves the result to every DCC addon and the Unreal plugin, so a name assembled in Blender matches what Unreal expects without anyone copying rules by hand.

How it works

1. You author the document in the web portal — either as YAML (the default) or as a Lua script for computed rules (see below). Editing requires the admin role.
2. The server compiles it: the taxonomy tree is resolved, every node gets its full effective validator set baked in, and errors (bad regex, malformed structure) are caught.
3. Clients consume the compiled form from GET /api/projects/:id/conventions/compiled and cache it for 5 minutes — after publishing a change, expect up to that long before every open DCC picks it up.

The current schema is version 3. Its core idea: names are assembled structurally from prefixes, suffixes, and dimensions — not from a single text template.

A complete example

YAMLversion: 3

dimensions:
  variant:
    required: false
    values: [Base, Hero, Damaged]
  lod:
    required: false
    values: [LOD0, LOD1, LOD2]
  number:
    required: false
    values: []          # empty = free-form

validators:             # global — apply to every asset
  - id: naming.convention
    severity: error
  - id: naming.no_special_chars
    severity: error

asset_types:
  StaticMesh:
    prefix: SM
    suffix: ""
    naming:
      pattern: "^SM_[A-Za-z0-9_]+$"   # guard rail the final name must satisfy
      max_length: 64
    source_path:
      mirrors_engine: true
    validators:                        # scoped to this asset type
      - id: mesh.poly_count
        severity: warning
        params: { max_tris: 50000 }
    categories:
      Props:
        folder: true
        subcategories:
          Weapons:
            folder: true
            prefix: Wep
            validators:                # scoped to this node + everything below
              - id: mesh.poly_count
                severity: error        # tightens the asset-type rule
                params: { max_tris: 20000 }
            subcategories:
              Melee:
                folder: true

With that document, a Static Mesh named Sword at Props/Weapons/Melee with variant Hero resolves to the name SM_Wep_Sword_Hero and the engine folder Props/Weapons/Melee.

The taxonomy tree

There is exactly one node shape in v3, and it repeats at every depth. An asset type's first level is authored as categories; every node in that map — and every node in any subcategories map below it — carries the same five fields: folder, prefix, suffix, required, validators, and (recursively) subcategories. There is no separate "category" or "subcategory" type in the schema, and no fixed number of levels — a leaf node needs nothing more than {}, and a studio that wants five levels of nesting just keeps writing subcategories.

static_mesh                                        asset_type — prefix "SM"
└─ Props                        folder ✓  prefix "" suffix ""
   └─ Weapons                   folder ✓  prefix "Wep"
      └─ Melee                  folder ✓  prefix ""
         └─ Daggers             folder ✓  prefix "Dgr"
            └─ (leaf — no subcategories)

An asset's place in the project is just the ordered list of node names a client walks to get there — its taxonomy path, e.g. ["Props", "Weapons", "Melee", "Daggers"]. Given that path, a Static Mesh named Sword resolves to:

• Name — SM_Wep_Dgr_Sword: the asset-type prefix, then every matched node's prefix in root-to-leaf order (Weapons' Wep, Daggers' Dgr — Props and Melee contribute nothing since their prefix is empty), then the asset name.
• Engine folder — Props/Weapons/Melee/Daggers: every matched node's own name, joined by /, for nodes where folder is true (the default).

Because a node's folder contribution and its name-token contribution are independent, the same node can do either, both, or neither:

• A node with prefix/suffix set but folder: false shapes the name without creating a physical subfolder — useful when a studio wants a Wep token on every weapon without a literal Weapons/ directory.
• A node with no prefix/suffix (like Props and Melee above) is a pure folder segment — it organizes the tree without touching the assembled name.
• validators declared at any node cascade to every node beneath it — see Asset validation — so a studio-wide poly budget set on static_mesh can be progressively tightened at Props, then Weapons, then Melee, without repeating the parts that don't change.

Keyword reference

Top level

dimensions.<name>

Validator entries

The same entry shape is accepted at all three scopes — global, asset type, and taxonomy node. Placement is the scoping; there is no applies_to field. See Asset validation for rule semantics and the catalog.

asset_types.<name>

Taxonomy nodes (categories and subcategories)

Every node under categories has the same shape and may nest subcategories recursively to any depth — Props/Weapons/Melee/Daggers/… is fine. An asset's place in the project is an ordered path of node names.

How a name is assembled

Dousen joins the following tokens with _, skipping empty ones:

1. the asset type's prefix
2. each taxonomy node's prefix, walking the path root to leaf
3. the asset name
4. each taxonomy node's suffix, also root to leaf (same traversal as the prefixes)
5. the variant (unless it is Base), then lod, then number values
6. the asset type's suffix

The engine folder path is derived separately: walk the same path and join the names of every node whose folder is true with /. Node prefixes and suffixes never affect the folder — only the node names do.

Finally, the assembled name is checked against the asset type's naming.pattern and naming.max_length — that's what the naming.convention validator enforces at export time.

Source paths

By default (mirrors_engine), the working file for an asset lives at the same relative path as its engine folder — a mesh headed for Props/Weapons keeps its .blend/.ma under Props/Weapons in the source root. To place sources elsewhere, give the asset type a template_override:

YAMLsource_path:
  template_override: "Art/Source/{{ category }}/{{ subcategory }}"

Templates use Jinja-style double-brace syntax. Available variables:

Worked examples

Each row assumes the asset resolves to the given taxonomy path and dimension selections; the rendered result is what every client (Blender, the UE plugin, and the server itself for the portal's Test Script panel) computes from the same template_override string.

Authoring in Lua

When rules are computed rather than written out — dozens of asset types sharing patterns, prefixes derived from a table, per-category poly budgets from a formula — you can author the document as a Lua script instead of YAML. Switch the editor's mode selector to Lua Script (or save via the API with ?type=lua).

The contract: define a config() function that returns a table with exactly the same v3 structure as the YAML. The server runs it at save and compile time — clients always receive the same compiled JSON regardless of authoring format.

LUA-- Generate several asset types from one table.
local types = {
  { key = "static_mesh",   prefix = "SM" },
  { key = "skeletal_mesh", prefix = "SK" },
  { key = "texture",       prefix = "T"  },
  { key = "animation",     prefix = "A"  },
}

function config()
  local asset_types = {}
  for _, t in ipairs(types) do
    asset_types[t.key] = {
      prefix = t.prefix,
      naming = { pattern = "^" .. t.prefix .. "_[A-Za-z0-9_]+$" },
      categories = { Characters = {}, Environment = {}, Props = {} },
    }
  end
  return {
    version = 3,
    dimensions = { number = { required = true, values = {} } },
    validators = {
      { id = "naming.convention", severity = "error" },
    },
    asset_types = asset_types,
  }
end

The script runs in a sandbox (mlua, DousenCore's embedded Lua interpreter): only the table, string, and math libraries are available. Everything else that could touch the filesystem or reach outside the sandbox is explicitly stripped from the environment — os, io, require, load, loadfile, dofile, loadstring, dostring, package, debug, and collectgarbage are all nilled out, and even string.dump is disabled so a script can't emit a loadable bytecode chunk. Two hard limits stop a runaway script: a 1 MiB memory ceiling, and a hook that fires every 10,000 VM instructions and aborts the run with "instruction limit exceeded" — there's no wall-clock timeout, just this deterministic instruction-count trip wire, so a typo'd infinite loop fails fast instead of hanging the server. Compile errors, a missing config(), or a return value that isn't a valid v3 table are all rejected at save, with the exact error shown in the editor.

In Lua mode the portal editor adds a Test Script panel: give it an asset name, an asset type, and a context (taxonomy path plus dimension values as JSON) and it dry-runs the script, returning the resolved name, engine path, and source path — without saving anything.

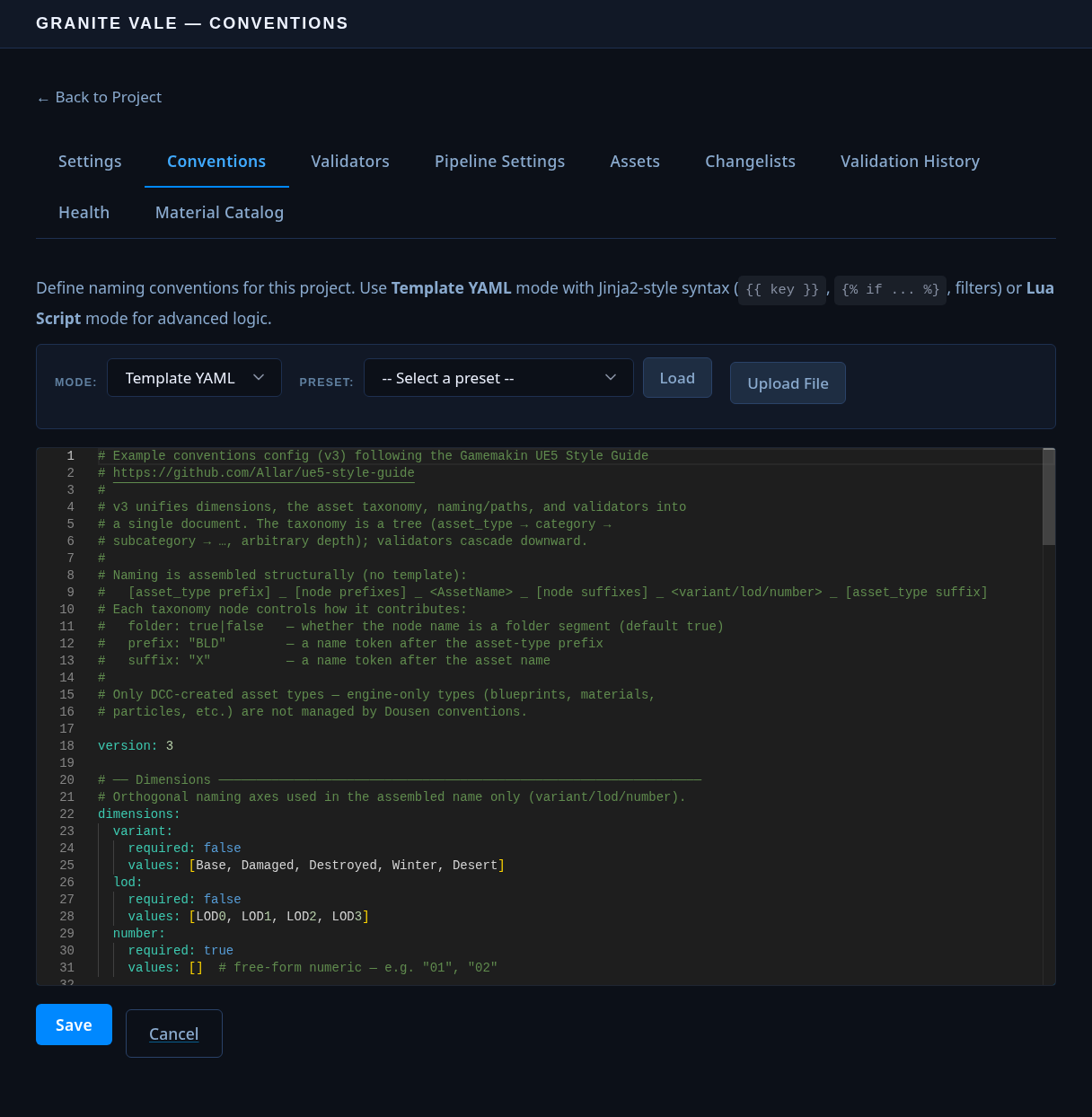

The portal editor

• Editor tab — a code editor with YAML and Lua modes, file upload, and presets to start from: UE5 Allar Style Guide (the default), Minimal, Nanite + Lumen — Static, Nanite + Lumen — Foliage, plus Lua versions of the Allar and Minimal presets.
• Quick Toggle tree — a master–detail view of the compiled taxonomy where you can enable/disable rules, change severities, and edit parameters per node without touching the YAML by hand. Each rule row shows whether it is added here, overridden, or inherited — and from where.
• Validate Names — paste a batch of asset names and check them against the current document before rolling it out.

How each client resolves conventions

Every client — the DCC addons, the Unreal plugin, and the portal itself — reads only the compiled JSON from /conventions/compiled. None of them parse the authored YAML or Lua; the name-assembly and path-resolution algorithm from How a name is assembled is re-implemented independently in Python and C++ against that same compiled shape, so a name built in Blender always matches what Unreal expects.

DCC addons (Blender, Maya, 3ds Max, …)

python/dousen/conventions.py ships two classes. ConventionsClient fetches GET /api/projects/:id/conventions/compiled (bearer-authed via DOUSEN_TOKEN) and caches the parsed JSON for 5 minutes (a monotonic-clock TTL); a failed fetch — network error, non-2xx, malformed JSON — is swallowed and .get() just keeps returning whatever was cached before, or None if nothing has ever succeeded.

ConventionResolver is pure logic over that cached dict, with no rendering step of its own:

• taxonomy_children() drives the cascading category/subcategory dropdowns in each addon's "Set Up Asset" panel — every pick narrows the next level's options straight from the compiled tree, to whatever depth it goes.
• resolve() returns the suggested name, engine path, source path, and a flat convention_tags dict (asset_type, the /-joined taxonomy, and the selected dimension values) that gets embedded as custom properties / FBX metadata, so Unreal's importer recovers an asset's taxonomy without the artist re-entering it.
• infer_selections() is the reverse path for assets that predate tagging: it matches the longest asset-type prefix on the file name, walks the taxonomy tree matching path segments to node names case-insensitively, and scans path segments for dimension values — used as the validation fallback when persisted tags are missing (see resolve_validation_scope() in python/dousen/addons/_common.py).

The Unreal Engine plugin

FConventionsConfig parses the same compiled JSON with UE's FJsonObject. FDousenUEModule::StartupModule fetches once at editor startup and then on a recurring FTSTicker every 300 seconds (5 minutes); a failed fetch only logs a warning (LogDousenUE) and leaves the previously-parsed config untouched, so a transient DousenCore outage never wipes out a working convention set mid-session.

Resolution mirrors the Python side field-for-field, working off a flat TMap<FString, FString> of tags (asset_type, taxonomy joined by /, variant, lod, number): ResolveName assembles the same prefix/suffix/dimension chain, ResolveEnginePath joins the folder-flagged node names, and ResolveSourcePath renders a template_override with FString::Replace. FAssetSyncManager calls all three when reimporting an asset from a bridge event, so the reimported asset lands at the same name and path a DCC would have suggested.

The web portal editor

The portal is the one client that also authors the document — see The portal editor above. Its Quick Toggle tree and Validate Names panel read the freshly-compiled document on every request (no 5-minute cache), so they always reflect exactly what every other client will see once their own cache expires.

What is checked when

Who can view and edit

Reading a project's conventions requires only a valid session — any signed-in member, and every DCC addon or the Unreal plugin authenticating with its bearer token, can fetch the authored document or the compiled JSON. Saving is admin-only, enforced twice: the portal's conventions editor sits behind the same require_admin route guard as the rest of the admin section, and PUT /api/projects/:id/conventions independently rejects any caller whose JWT role isn't Admin with 403 Forbidden — so the API can't be used to bypass the portal gate.

API reference

Troubleshooting

A change isn't showing up in a DCC or Unreal

This is almost always the 5-minute cache, not a bad document. Every consuming client fetches /conventions/compiled once, then reuses that copy for 5 minutes before checking again:

• DCC addons — ConventionsClient's TTL is a monotonic 300 seconds from the last successful fetch. There's no exposed "reload conventions" button; the fastest way to force a re-fetch is to restart the DCC (a fresh process starts with an empty cache and fetches immediately).
• Unreal — fetches once at editor startup, then every 300 seconds on an FTSTicker. Restarting the editor (or reloading the plugin) forces an immediate re-fetch, same as a DCC restart.
• The portal itself never has this problem — the Quick Toggle tree and Validate Names panel always compile fresh on every request.

DousenCore is unreachable

Both client implementations fail toward the last known-good document rather than erroring out:

• ConventionsClient._fetch() catches network errors, non-2xx responses, and JSON decode failures, and returns None on any of them — .get() then just keeps serving whatever was already cached (or None, if nothing has ever succeeded, in which case addon code degrades to skipping convention-based suggestions and validators fall back to the built-in catalog defaults rather than the project's tuned rules).
• The Unreal plugin's failure branch only logs a LogDousenUE warning — it never touches the previously-parsed FConventionsConfig, so an editor session that already fetched a good document keeps functioning normally through an outage.

Net effect: a DousenCore restart or network blip doesn't break a running session — everyone keeps working off the last conventions document that compiled successfully until the server answers again.

An edit to the document doesn't take effect after saving

DCC addons and the Unreal plugin never parse YAML or Lua themselves — they only ever consume the pre-compiled JSON from /conventions/compiled. If the stored document doesn't compile (bad regex, wrong version, malformed validator entry, a Lua config() that errors), /conventions/compiled and /conventions/json respond with an HTTP 500 and the compile error as the body — every client's periodic refresh then fails exactly as described above and silently keeps the previous good document, so a broken save doesn't visibly break anything until you go looking for the change that should have landed.

To diagnose a document that won't compile:

• For YAML, remember that a plain save only checks syntax and template_override syntax (see What is checked when above) — a bad regex or an asset-type-level subcategories key isn't caught until the next compile. Open the Quick Toggle tree or run Validate Names immediately after saving to force a compile and surface the error.
• For Lua, saves are fully compile-checked end to end, so a script that doesn't produce a valid v3 table is rejected at save time with the exact error shown in the editor — it's never possible to save a Lua document that later fails to compile.
