The desktop app

Updated July 2026

DousenDesktop (a Qt6/C++ system-tray application) is the hub of the pipeline on every artist machine. It lives in the system tray for the whole session and does four jobs at once: it shows your Jira tasks and lets you open/submit Perforce changelists against them, it launches your DCCs with the Dousen addon already wired in, it runs the local HTTP bridge relay that lets those DCCs (and Unreal) talk to each other, and it keeps your login session and the app itself up to date in the background.

This page is both a walkthrough and a reference — the panel table, settings table, and offline-behavior tables below are meant to be looked up, not just read once.

First launch: onboarding

The very first time DousenDesktop runs on a machine, a full-window OnboardingWindow takes over before the tray icon or main window ever appears. It has a welcome screen followed by six steps — Server (Dousen Cloud or self-hosted URL) → Jira (base URL, email, API token) → Version Control (Perforce or Git) → Workspace (Perforce depot path and client mapping, skipped for Git) → Unreal Project (browse or auto-discover a .uproject) → DCC Applications (scan for installed DCCs to register). The full step-by-step, including the Perforce workspace auto-creation flow, is in Quick start.

Finishing onboarding sets config.onboardingComplete = true and the wizard never runs again automatically. From the sign-in screen (see below) a Re-run Setup link reopens it on demand — useful if a machine needs to be repointed at a different server or Perforce workspace from scratch.

Signing in

Once onboarding is done, DousenDesktop checks for a cached, still-valid session; if none exists it shows the sign-in overlay before the rest of the app is usable. What it looks like adapts to config.deploymentMode:

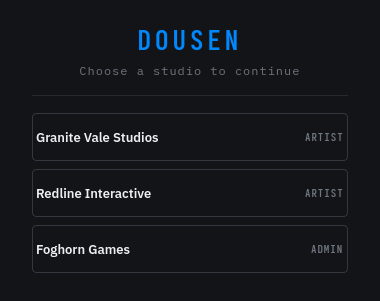

• Cloud — sign in with your studio account email and password, or click Sign in with Browser. If the account belongs to more than one studio, a Choose Studio picker appears listing each studio's name and your role in it before the login completes.
• Self-hosted — email and password only, checked directly against the studio's own DousenCore.

For admins: single-device enforcement is per account, not per machine. A shared workstation (a review station, a render box artists take turns on) will boot its previous occupant every time someone else signs in with their own credentials. Give a shared machine its own dedicated Dousen account and license seat instead of having artists sign in as themselves on it.

The main window

Opening Dousen (from the tray icon, or automatically after sign-in) shows the main window: a header, an apps bar, three tabs, and a status bar.

Closing the window (the X button) just hides it to the tray — the bridge relay and background polling keep running. Use the tray menu's Quit to actually exit the process.

My Tasks

TaskListWidget owns a Jira client, a poll timer, and a split view: a task list on the left, a detail card on the right. Selecting a task loads its Jira description (rendered HTML, images included) and publishes a task.context bridge event so any DCC you launch next starts with that task already selected.

The list fetches 50 issues per page (assignee = currentUser() AND statusCategory != Done); a Load more tasks… button under the list fetches the next 50 when more exist. From the detail pane you can:

• Open in Jira — opens the issue in your browser.
• Open CL — opens a Perforce changelist against the task (disabled once one exists for it).
• Submit — opens SubmitDialog for a submit message, then submits the task's changelist.
• Unshelve — restores the most recent shelved changelist for the task into your workspace, if one exists.

The tab polls Jira on the configured task poll interval (Settings → Connection, default 30s) and re-fetches the shelved-changelist row on every tick. If Jira becomes unreachable, an offline circuit breaker backs the poll interval off instead of retrying — and failing — every tick:

A single persistent banner — "Offline — can't reach Jira. Retrying automatically." — replaces per-tick error toasts while this is active, and clears with a "Connection restored" toast on recovery. A Jira auth failure (bad email/API token) is handled differently: polling stops outright rather than backing off, since retrying with the same stale credentials only repeats the failure — fix the token in Settings → Jira to resume.

Bridge

BridgeStatusWidget shows a chip per app currently registered on the bridge relay and a timeline of its last 20 routed events (timestamp, event type, source/target app, file path), refreshed every 2 seconds. It's the fastest way to confirm a publish from a DCC actually reached DousenDesktop before you go looking for the reason it didn't show up elsewhere. The relay itself — its HTTP endpoints, auth model, and event schema — is a separate reference: see Bridge API.

Logs

A plain-text view of the app's own log stream (capped at 2000 blocks), with a Clear button. This is the first place to look when a launch or a bridge event doesn't do what you expect — see the troubleshooting callout under Launching DCCs.

The tray icon

The tray context menu offers four items:

When one or more DCCs are registered on the bridge, the icon gains a green numeric badge — the connected-app count, capped at displaying 9+. Unreal counts toward it while its plugin is actively polling the relay (even without an explicit /bridge/register call), but never twice: if a live UE session has also registered by id, the poll-based check is skipped so it isn't double-counted. The badge re-evaluates every 3 seconds; hovering the icon shows the connected app names.

Notifications

Two kinds of bridge event surface as a desktop notification: Mesh exported/Texture exported (filename and source app) and Opening in DCC (another app, typically Unreal's content-browser "Open in DCC" entry, asked to open a file here). A 2-second batch window collapses a burst into one summary — e.g. "3 asset(s) exported, 1 DCC open request(s)" — so a big publish doesn't fire a notification per file.

Launching DCCs

Always launch DCCs from the apps bar rather than starting them directly — AppRegistry::launch() hands the process everything its Dousen addon needs to come up already wired in:

Executable paths come from Settings → DCC Apps, auto-filled by the Discover DCCs scanner or entered by hand; if a launch fails with "Executable not found", fix the path there.

The flow also runs in reverse. When another app publishes a dcc.open event — Unreal's "Open in DCC" content-browser entry is the main producer — SourceAssetTracker fetches that asset's source record from DousenCore and resolves a local path by storage type: Perforce runs p4 sync then p4 where for the client-mapped path; Google Drive/OneDrive joins the configured mount path (Settings → Connection) with the stored relative ref; local uses the last-known path as-is. It then matches the event's preferred DCC id against Settings → DCC Apps and launches it, starting the app first if it isn't already running.

Per-addon behavior once launched — panel UI, export hooks, validator wiring — is documented per DCC in DCC addons.

Settings reference

The Settings dialog (header → Settings) is entirely artist-scoped and local to the machine. Project-wide configuration — naming conventions, validator rule sets, pipeline settings YAML — lives in the web portal and is not edited here; see Settings reference for that side. Five tabs:

Automatic updates

UpdateChecker polls an HTTPS JSON manifest — version, per-platform download URL/size, SHA-256, and a base64 Ed25519 signature — 5 seconds after launch (unless a check already happened within the last 4 hours) and every 4 hours after that; Check for Updates in the tray menu runs one immediately regardless of the interval.

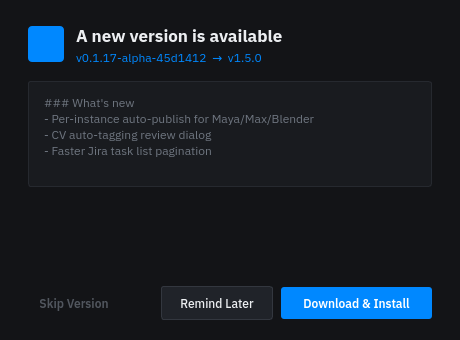

When the manifest's version is newer than the running build, UpdateDialog shows the version jump and changelog with three choices: Skip Version (remembered — that version is silently ignored on future automatic checks, though a manual check still reports it), Remind Later, or Download & Install.

A download is only trusted after two checks both pass: the SHA-256 of the downloaded bytes must match the manifest, and the manifest's Ed25519 signature over those bytes must verify against the public key compiled into the build. Either the manifest URL or the download URL being non-HTTPS, a missing SHA-256, a missing signing key in the build, or a bad signature all fail closed — the update is refused rather than installed unverified. Once verified, the installer is written to your Downloads folder and Install & Restart runs it silently (/S on Windows) or hands it to the OS's file handler on Linux/macOS, then quits the app.

Working offline

DousenDesktop is designed to survive short network interruptions without losing artist work, across two independent mechanisms:

Jira tasks

Covered above under My Tasks: the last-fetched task list is cached to disk and shown immediately on launch, and a network-level Jira outage backs off the poll interval rather than erroring on every tick.

DousenCore operations

OperationQueue persists fire-and-forget calls to DousenCore that fail because the server is unreachable, and replays them once it's back:

Both are idempotent server-side, so replaying them on reconnect is safe; a queue entry is removed only once the server gives a definitive response (success or a 4xx rejection — an operation the server has actively refused isn't retried forever). submitChangelist is deliberately not queued: it needs the server-assigned changelist id from a prior openChangelist, so it stays a live, online-only call. The queue is flushed automatically on every point where connectivity is re-established: login, a successful token refresh, and the periodic 30-second refresh-if-needed check.

Pre-configuring machines (admins)

Admins can skip per-machine onboarding with a config bundle — a small JSON file with the keys org_id, control_plane_url, and server_url. Two delivery methods:

• --config-url <https-url> — pass a link on the command line (or bake it into an installer shortcut); the bundle is fetched and applied on startup, before the onboarding gate is even checked.
• Drop dousen-config.json into the working directory, Downloads, home folder, or the app's config folder. DousenDesktop finds it at launch and asks the artist to confirm before applying it.
